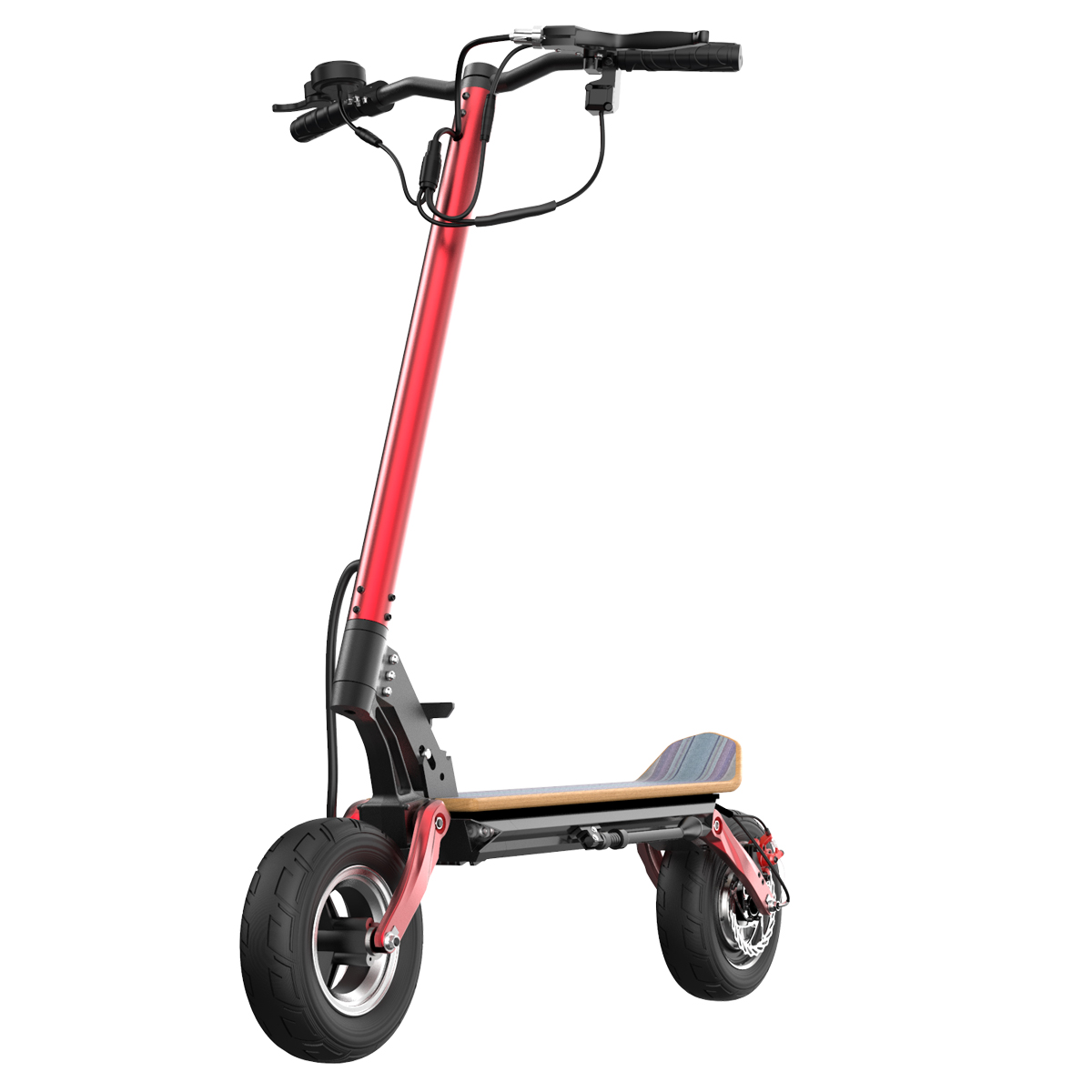

10-inch Dual Swing Arms Dual Drive Wide Tire

10-inch Dual Swing Arms Dual Drive Wide Tire

Product Size: 121x19x116cm
1200W Brushless Dual Motor Acceleration
10-inch off-road wide tires
Range: 30-70km optional
Charging Time: 4-6Hours
Maximum Speed: 60KM/H

Product Details

Attachment download

10-inch Dual Swing Arm Dual Drive Wide Tire


Technical Specifications
Item No.MA12
Product Size  121x19x116cm
Motor1200W Brushless Dual Motor Acceleration
Charging Time4-6 Hours
Maximum Speed60 km/h
Light Front intergrated headlight (with Built-in Horn), Rear Lighting
HollIntegrated with the Front Headlight
FrameTop Opening Frame, Integrated Aluminum Alloy Construction
Max. Loading200 kgs
N.W./G.W.22kgs/25kgs
Range30-70km optional
Tire11-inch off-road wide tires acceleration
BrakeFront and Rear Disc Brakes with Power Cut-off Protection (Dual Disc Brakes Front and Rear)
Packing Size129x26.5x50 cm
Colorred
Varianten
Voltage Currency
36V13A
36V15A
48V10A
48V12A
Configuration

  • 10-inch off-road wide tires

  • Aluminum alloy wheels

  • Front and rear disc brake system

  • Integrated foldable frame

  • Supports switching between single and dual motor drive

  • Maximum speed of up to 60 km/h

  • Front and rear lights


Customation Options

  • Larger Battery Capacities and Motor Power Available for Customization

  • Single/Dual Motor Drive Customizable

  • Front and Rear Vacuum Tires Customizable

  • Free Color Customization

  • Various Laser and Silk-Screen Logo Printing Available

  • Free Customization of Carton Logo
